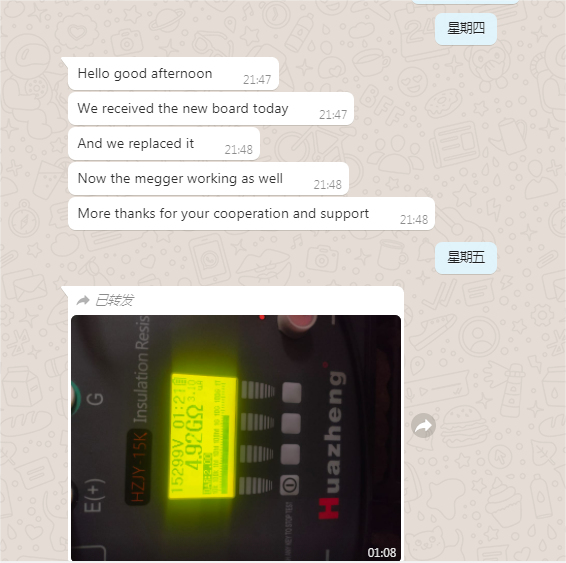

Positive reviews of insulation resistance tester from buyer feedback

I. Feature

Intelligent High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V,5000V, 10000V, test up to 10TΩ.

1. Strict accordance with the safety standards for design

2.Insulation resistance range 10TΩ @ 10 kv

3.Short circuit current can be adjusted, maximum 5 mA (Up to 10mA short circuit current product can be ordered.

4.Automatic display polarization index (PI), Induced electric absorption ratio test values (DAR), and can test the leakage current and capacitance.

5.The anti-interference performance is superior. When the interference current reaches 2mA, the instrument still ensures the test accuracy.

6.Rapid discharge of capacitive test products, no need for manual discharge when testing cables, automatic rapid discharge of instruments.

7. 2 power supply modes: the battery is powered by lithium ion battery, and the battery life can reach 4 hours (10000V @100m test resistance). It can also be charged while in use. In case of power failure, it can be automatically converted from AC power supply to battery power supply.

8.Insulation resistance simulation column.

9.Digital filtering functions, external influence deviation display value causing mitigation point using filter function.

10.Perfect protection function, and the spare fuse prompt functions.

Insulation Resistance Tester
