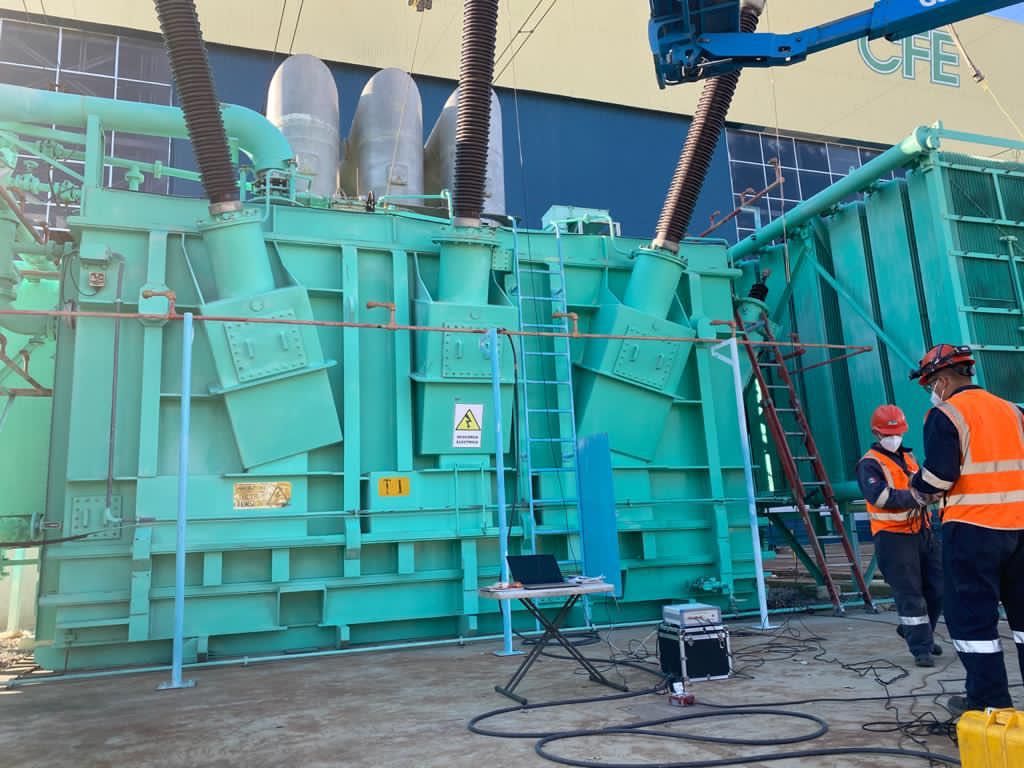

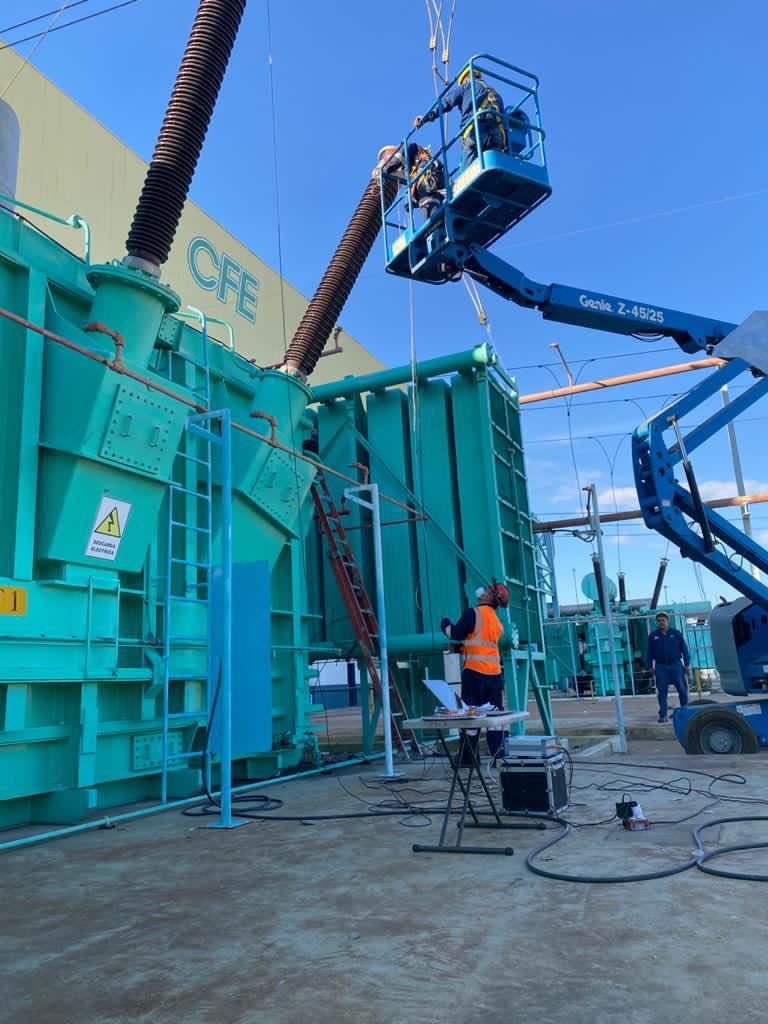

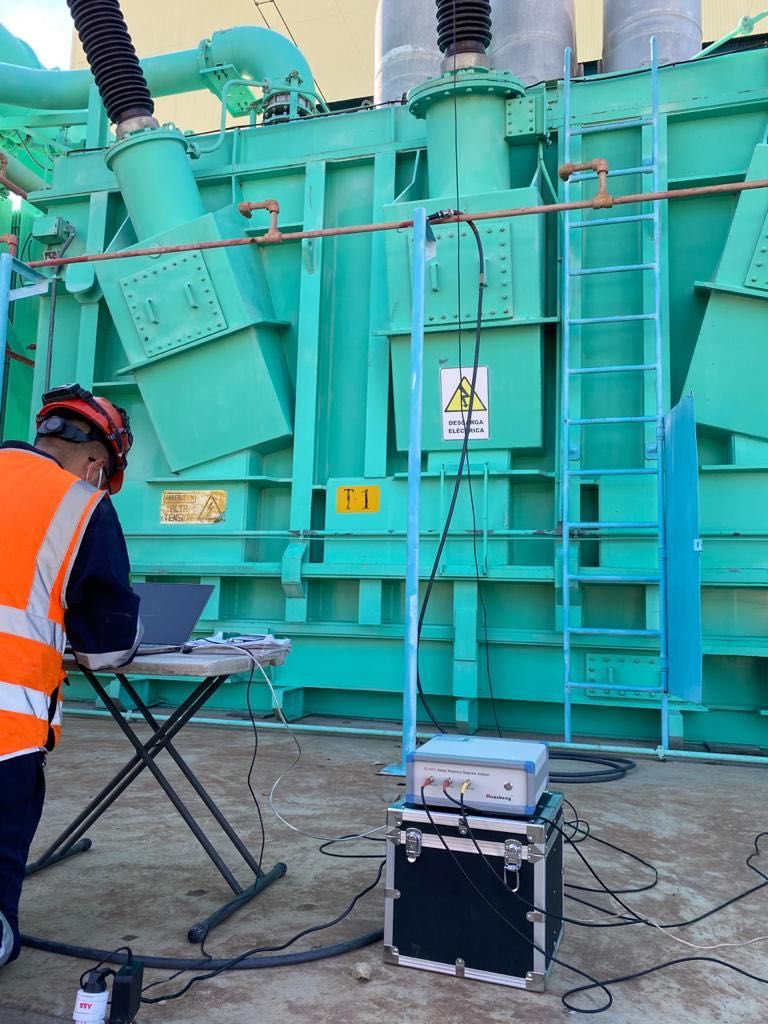

Buyer Feedback-Practical Operation Site Of Transformer Winding Deformation Tester

1、Main Technical Indicators

 Measuring speed: 1 min- 2 min for single-phase winding

 Output voltage: Vpp-25V, adjusting automatically in test

 Output impedance: 50Ω4

 Input impedance: 1MΩ (the response channel is built with 50Ω matching resistance)

 Frequency scan scope: 10Hz-2MHz (10Hz-30MHz, optional)可选

 Frequency accuracy: 0.001%

 Frequency scan manner: linear or logarithmic, frequency sacn interval and number of sweep points are freely settable

 Curve display: amplitude-frequency curve (phase-frequency curve, optional)

 Width of measuring dynamic range: -100dB~20dB

 Supply voltage: AC100-240V 50/60Hz

 Tester weight: only 3.8kg

2、Main Features of Test Analysis Software

 Use windows platform compatible with Window 2000/Window XP/Windows 7/windows 8.

 Use database to save test data and render concise and easy data management.

 Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.

 Software management function is powerful that takes into full account of site use demand. Measuring data is automatically saved and exported to form Word version test report (require installation of relevant Office software) or JPG photo report to facilitate the user to export test report.

 The software has distinctive humanized feature. Measuring conditions are mostly options, which exempt the need of many inputs and bring about easier operation.

 The software has high degree of intelligence. You only need to click a key to complete all measurements after connection of input and output signals.

 The software interface is concise, vivid and practical.

Our company's products have been unanimously recognized and praised by buyers. Welcome new and old customers to come to consult.
