I.Introduction

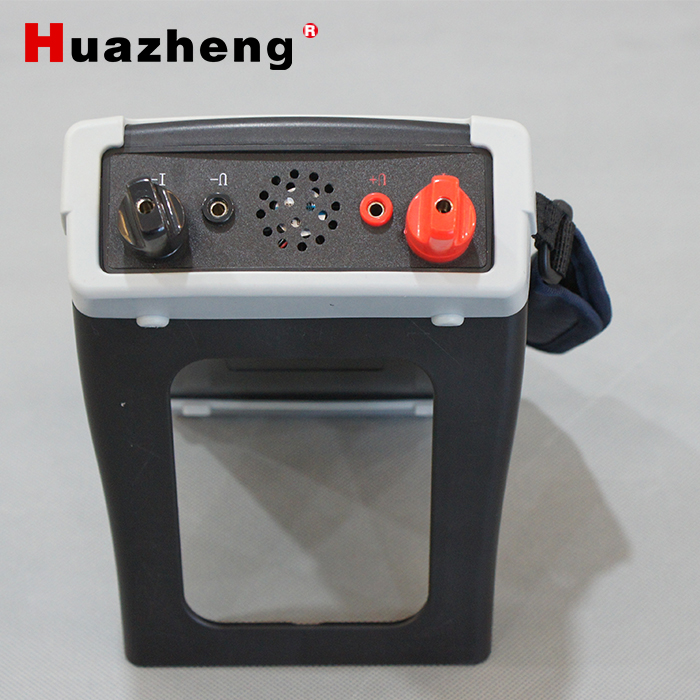

The hand-held Circuit resistance tester is an innovative product. The product is compact, hand-held operation, battery power supply, easy to carry.

The product is mainly used in the measurement of contact resistance and other micro-Euclidean resistance of switch contacts. The test speed is fast and the accuracy is high.

II.Packaging Content

After receiving the packing box, open the packing box and check if there is any damage. If the freight packing box is damaged or the liner material is indented, please inform the freight company or our salesman immediately.

Please check if you have received the following items in the product package：

√1 Hand-held Circuit resistance tester

√1 sets of test lines (red and black each)

√1 charger

√1 user manual

√1 copy of certificate and factory test report

√1 standard resistor

√1 external printer（optional）

III.Features

u Lithium battery power supply, a charge can be continuously tested more than 600 times, the test process is simple and convenient.

u The maximum output current is 100 A, multi-stage current is optional, and the test range is wide.

u When doing 100A test, the longest test time can be up to 60 seconds, which can satisfy various field applications.

u The measuring range is wide and the precision is high. At 100A, it can reach 2000μΩ.

u Has the open circuit protection, overheating protection and so on perfect protection function.

u 5. 6 inch super-industrial-grade high-brightness color LCD screen, in strong sunlight display is still clearly visible.

u Equipped with external printer, easy to print data.

u With native storage and USB disk storage, easy to save data.

IV.Technical Index
