I.Technical Characteristics And Parameters

1. Technical features

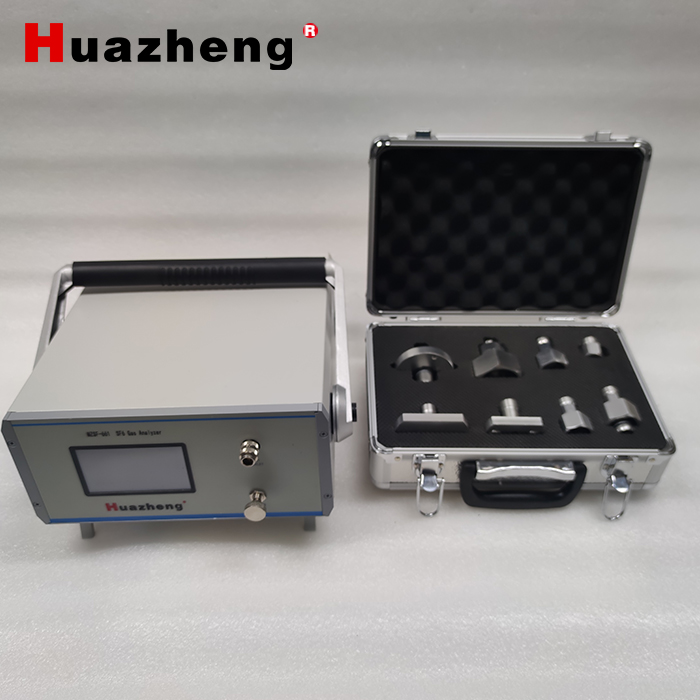

HZSF-661 SF6 comprehensive tester is a set of SO2, H2S, CO, HF, dew point and purity analyzers in one, and concentrates the functions that can only be achieved by multiple instruments in one instrument. One on-site measurement can complete two indicators detection, which greatly saves the gas in the equipment, saves 3/4 of the gas consumption in one measurement, reduces the user's workload, and improves work efficiency.

Ø Fast and gas-saving: After starting the machine and entering the measurement state, the measurement time is about 5min.

Ø ¨ Self-locking joint: It adopts the self-locking joint imported from Germany, which is safe and reliable, without air leakage.

Ø ¨Data storage: It adopts large-capacity design and can store up to 250 sets of test data.

Ø ¨ High-definition display: 4.3-inch touch screen is used to directly display the measured data.

Ø ¨Built-in power supply: large-capacity lithium battery, can work continuously for 10 hours at a time.

Ø ¨Electronic flow: Built-in electronic flow meter, digital display flow throughout the whole process, and with flow over-limit alarm function.

Ø ¨Open calibration: This instrument has a calibration function, and the entire calibration work can be completed only by operating on the instrument.
