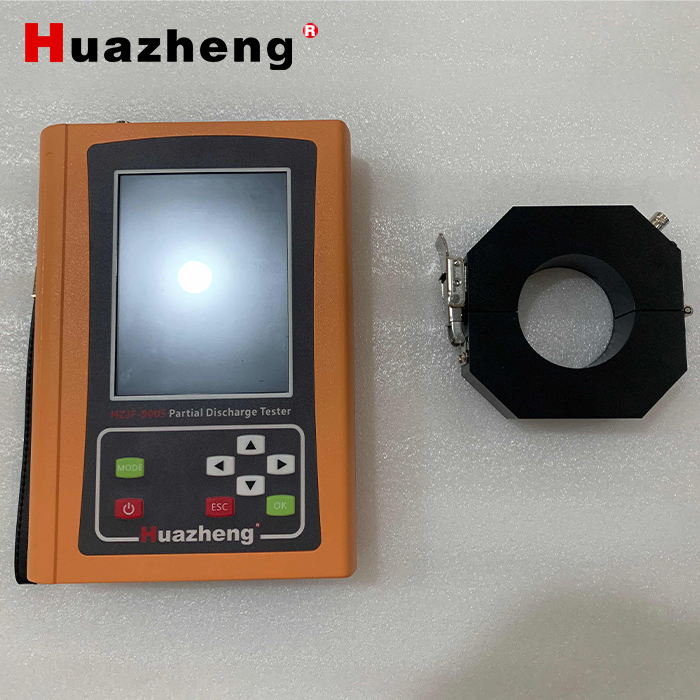

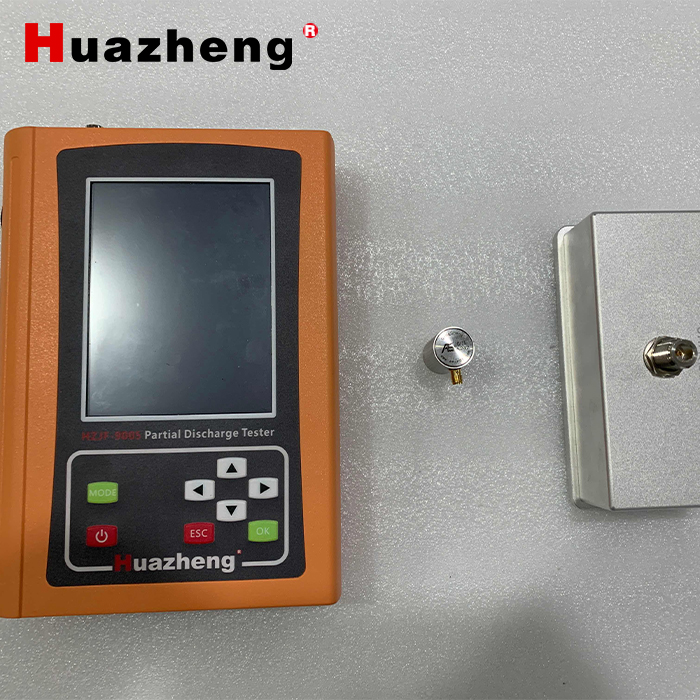

HZJF-9005  Handheld Partial Discharge Detector Digital Partial Discharge tester Partial Discharge Tester PD Test Equipment
HZJF-9005 Handheld Partial Discharge Detector Digital Partial Discharge tester Partial Discharge Tester PD Test Equipment
HZJF-9005 Handheld Partial Discharge Detector Digital Partial Discharge tester Partial Discharge Tester PD Test Equipment

I. Introduction

Local discharge is the signs and expression of the inside of the power equipment, and the reason for the further degradation of the insulation. Because the consequences of insulation and breakdown are often serious, it is particularly important to perform local discharge detection on power equipment. The local discharge of electrical equipment is an electrical discharge that will not completely connect the electrode. This discharge amplitude is usually small, but they can continue to decrease in insulation, which may lead to the final failure. Power -based local discharge detection provides a fast and simple method to identify a potential insulation failure that may cause power outage or personnel damage.

In response to the relevant charging detection requirements of the State Grid "Electric Equipment Power Testing Technical Specifications", this instrument uses high -frequency detection technology to measure local discharge, comprehensively use computer technology, ultrasonic, high -frequency, temporary electric wave sampling technology, simulation electronic technology, high -speed high -speed, high -speed high -speed Signal acquisition technology and advanced digital signal processing technology, based on the development of Linux operating system platform, provides local discharge two -dimensional, three -dimensional map, amplitude phase spectrum wave shape and discharge signal quantification value. Local discharge pulse waveforms for detailed observation and analysis, which can better evaluate the local discharge of electrical equipment. It is suitable for daily inspections of high -voltage cables, power transformers and other electrical equipment insulation performance. It has the characteristics of high sensitivity and strong adaptation performance. It can effectively discover its related insulation defects. It is an ideal tool for the state detection when the power equipment is running.

II. Main Functional Characteristics And Indicators

1) The high -voltage electrical equipment can be quickly detected at the site to specially discharge the high -voltage cable. It is convenient to use, the size is small, the weight is light, and it is easy to carry.

2) In the bureau's detection sensor design circuit, with the help of advanced radio frequency signal processing, high -frequency signal processing, and weak signal processing technology, it uses high -precision AD conversion and high -speed digital signal processing chip for digital signal processing. It has good anti -interference performance and measurement Accuracy.

3) Locked by ultrasonic, temporary radio waves, high -frequency, and special high -frequency various methods jointly put signals.

4) A built -in non -contact air sound sensor, which can be configured with an external table sticker ultrasonic sensor.

5) Have a variety of windows such as phase straight lines, PRPD, PRPS to analyze the test data.

6) Support data storage, view, delete and other functions.

7) Support waveform data recording function.

8) Support attention and alarm multi -level threshold settings, and provide intuitive prompts through different values colors.

9) Use large -capacity lithium batteries to power, and one consecutive charging can work for 6 to 8 hours at one consecutive.

10) Use Linux as an embedded operating system to facilitate post -function expansion and fusion of the Internet of Things technology.



III. Main Technical Indicators

1. Non -contact ultrasonic sensor (AA)

Sensor center frequency: 40kHz ± 1kHz

Measurement range: -7 ~ 68DBUV

Resolution: 0.1db

Linear error: <± 20%

Sensor form: bending form/cluster form

2. Contact ultrasonic sensor (AE)

Detection frequency band: 20KHz ~ 80kHz (SF6 gas insulation power equipment)

80kHz ~ 200kHz (fuel -supply power equipment)

Dynamic measurement range: 60dB

Resolution: 0.1db

Linear error: <± 20%

3. Temporary ground voltage sensor (TEV)

Detection frequency band: 3MHz ~ 100MHz

Measurement range: 0 ~ 60dbmv

Resolution: 0.1db

Linear error: <± 20%

4. Special high -frequency sensor (UHF)

Detection frequency band: 300MHz ~ 1500MHz

Measurement range: -70dbm ~ -10dbm

Sensor flat effective height: ≥10mm

Resolution: 0.1dbm

5. High -frequency sensor (HF)

Detection frequency band: 0.3MHz 30MHz

Measurement range: 0 ~ 70db

Gain: -30 ~ 20db

Resolution: 0.1db

Transmission impedance: ≥10mv/ma

Input impedance: 50Ω

6. The whole machine parameter

Working environment: temperature -20 ℃ 50 ℃, humidity 0 85 %

Display: HD color 5.6 -inch TFT LCD display, resolution 480*640

Host volume: 230x170x48

Host weight: 1.35kg

Battery battery life: about 6 hours
