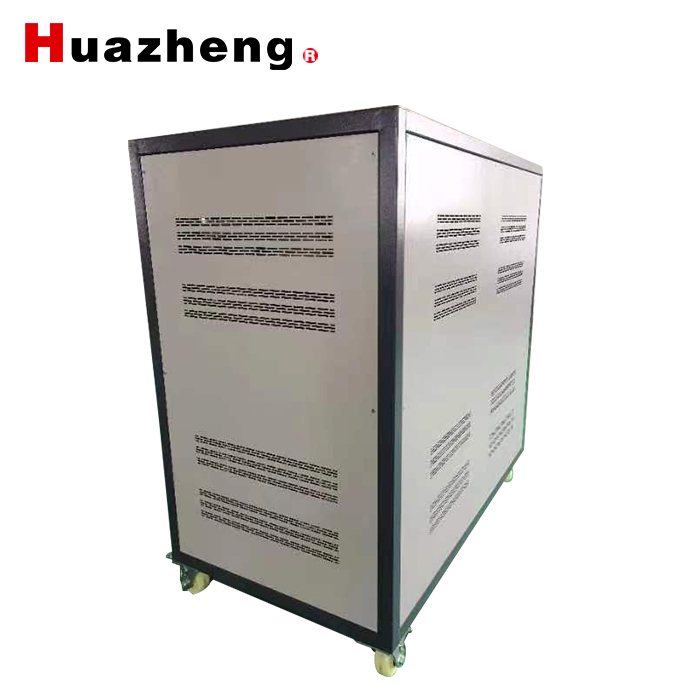

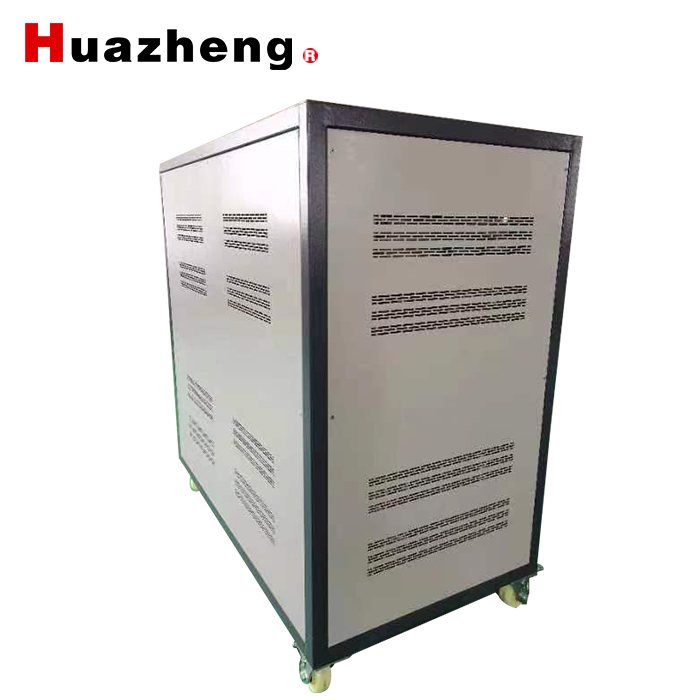

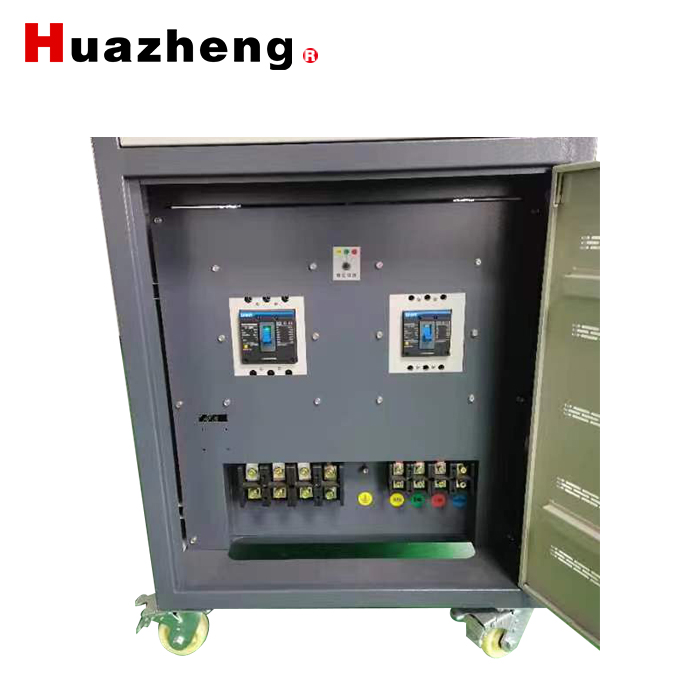

APS-50000 Single-phase Programmable Variable Frequency Power

APS-50000 Single phase programmable variable frequency power supply

I. Overview

• Input voltage 220V/380V ± 10%; Input frequency: 47-63 Hz

• Output voltage: phase voltage 0V - 150V A C/0V-300V A C or line voltage 0V-520 V (voltage can be customized above 600V or 1000V)

• Output frequency: 40 Hz - 25 0 Hz continuously adjustable (10 00 Hz customizable)

• Output of high and low gears: automatic switching of high and low gears

• No radiation interference, small harmonic component, and small interference after special treatment

• Large capacity, small size, light weight, high efficiency, mute device, high reliability

• Strong overload capacity, the instantaneous current can withstand 3 times of the rated current

• Over current, over temperature, over voltage, short circuit, overload, current limiting, instantaneous power failure protection and warning device

• With 5 groups of stored voltage and frequency data for one key call

II. Single Phase Selection Table

Mode		APS51005	APS51008	APS51010	APS51015	APS51020	APS51030	APS51050	APS51075	APS51100
Caoacity		5KVA	8KVA	10KVA	15KVA	20KVA	30KVA	50KVA	75KVA	100KVA
Output voltage		0-150V/0-300V Automatic switching between high gear and low gear
Output current	L=120V	42A	67A	84A	126A	168A	252A	416A	626A	840A
Output current	H=240V	21A	33.5A	42A	63A	84A	126A	208A	313A	420A
Frequency		40-250Hz(0.01Step)
Size(WHD)		430425550		680450650		800450650	1020610930			1620750 1200

Parameter specification
Operating mode		SPWM(Sinusoidal pulse width modulation)
Input phase number	Number of phases	1Φ2W 220V± 15% or 3Φ4W 380V± 15%
Output	Number of phases	1Φ2W
	Voltage	0- 150V/0-300V Automatic switching between high gear and low gear
	Current	42A-840A
	Frequency	40-250Hz(0.01Step)
LED display		Vrms, Arms, Fre, Wattage, PF
Voltage resolution		0.01V
Current resolution		OutputIo<10A， resolution0.001A； Output10A≤ Io<100A， resolution0.01A； Output100A≤ Io<1000A， resolution0.1A； OutputIo≥1000A， resolution1A；
Frequency resolution		0.01Hz
Power regulation rate		≤ 1%
Load adjustment rate		≤ 1%
load regulation		≤ 1%
Frequency stability		0.01%
Waveform distortion		≤ 1% (Pure resistive load)
Measurement accuracy	voltage	0.5%FS+5dgt
	current	0.5%FS+5dgt
	frequency	0.01%FS+5dgt
	power	0.5%FS+5dgt
Setting accuracy	Voltage	0.2%FS
	current	0.1%FS
Current limiting setting		0-MAX Current
Storage		5 groups of storage： M1 (V/F/A) 、M2 (V/F/A) 、M3 (V/F/A) 、 M4 (V/F/A) 、 M5 (V/F/A)
Protect		Over Current、Over Temp、Over Load、 Short Circuit

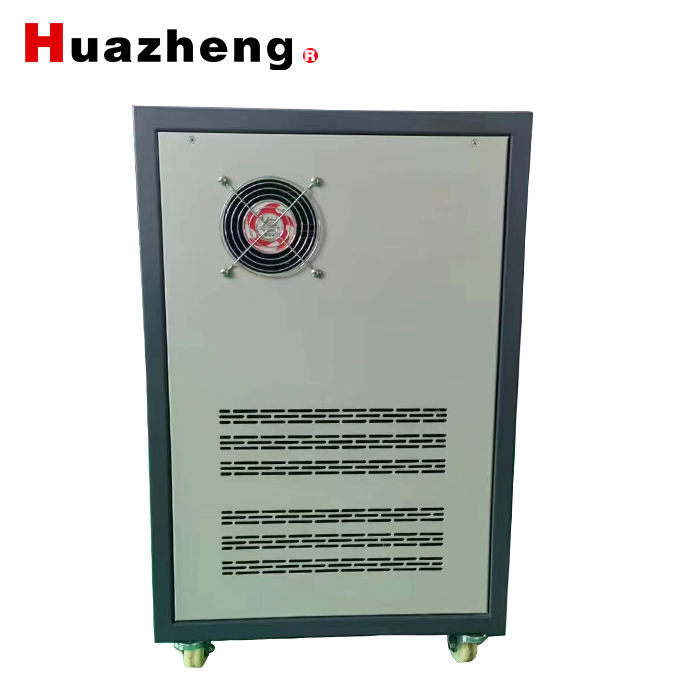

Cooling mode		Forced cooling by fan
Operating environment		0-40℃/10-90%RH

III. Three Phase Selection Table

model	Capacity	Output voltage	Output current ( L120V/H240V)	Frequency	size
APS53005	5KVA	0- 150V/0-300V Automatic switching between high gear and low gear (Line voltage： 0-260V/0-520V)	14A/7A	40-250Hz (0.01Step)	800450650
APS53010	10KVA		28A/14A
APS53015	15KVA		42A/21A
APS53020	20KVA		58A/29A		1020610930
APS53030	30KVA		84A/42A		1140730930
APS53050	50KVA		140A/70A
APS53075	75KVA		210A/105A
APS53100	100KVA		280A/140A		1620750 1200
APS53150	150KVA		420A/210A		1620750 1200
APS53200	200KVA		588A/294A		180010501600
APS53300	300KVA		840A/420A		180010501600
APS53500	500KVA		1390A/695A		180010501600 *2

Parameter specification
Operating mode		SPWM(Sinusoidal pulse width modulation)
Input phase number	Number of phases	3Φ4W 380V± 15% (5KVA 、10KVA optional 1Φ2W 220V± 15%)
Output	Number of phases	3Φ4W
	Voltage	0- 150V/0-300VAutomatic switching between high gear and low gear ((Line voltage： 0-260V/0-520V)
	Current	14A-1390A
	Frequency	40-250Hz(0.01Step)
LED display		Vrms、Arms、Fre、Wattage、PF
Voltage resolution		0.01V
Current resolution		OutputIo<10A， resolution0.001A； Output10A≤ Io<100A， resolution0.01A； Output100A≤ Io<1000A， resolution0.1A； OutputIo≥1000A， resolution1A；
Frequency resolution		0.01Hz
Power regulation rate		≤ 1%
Load adjustment rate		≤ 1%
load regulation		≤ 1%
Frequency stability		0.01%
Waveform distortion		≤ 1% (Pure resistive load)
Measurement accuracy	voltage	0.5%FS+5dgt
	current	0.5%FS+5dgt
	frequency	0.01%FS+5dgt
	power	0.5%FS+5dgt
Setting accuracy	Voltage	0.2%FS
	current	0.1%FS
Current limiting setting		0-MAX Current
Storage		5 groups of storage： M1 (V/F/A) 、M2 (V/F/A) 、M3 (V/F/A) 、 M4 (V/F/A) 、 M5 (V/F/A)
Protect		Over Current、 Over Temp、 Over Load、 Short Circuit
Cooling mode		Forced cooling by fan
Operating environment		0-40℃/10-90%RH
