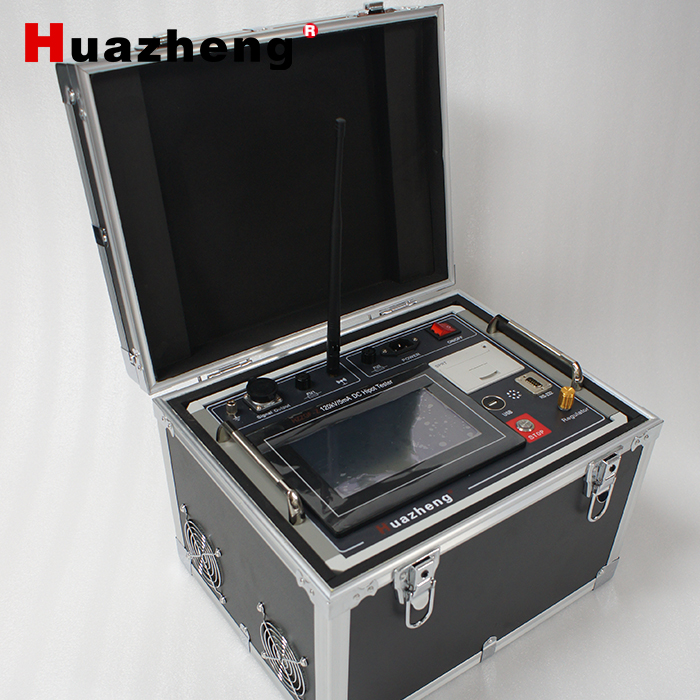

1. Product overview

Intelligent DC high voltage generator, the main function of this product is to output negative DC high voltage, output

With good voltage stability and high precision, it is an indispensable product in preventive tests and DC insulation withstand voltage tests.

Taste. The products are widely used in the prevention and control of power generation and power supply departments, power transmission and transformation engineering companies and large factories and mines

Sexual testing and research institutes.

2. Main features

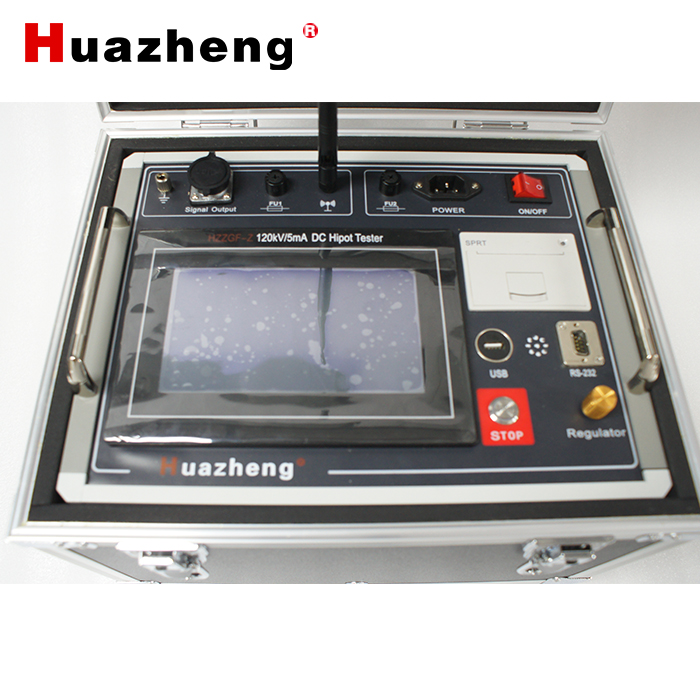

1. The instrument is controlled by single-chip microcomputer, 7-inch 800*480 full-color touch configuration LCD screen, Chinese and English can be automatically

Toggle, the display is clear under sunlight.

2. The software can set the test voltage, protection voltage and test time, and the test can be completed automatically.

3. With overvoltage protection, overcurrent protection, disconnection protection, non-zero start, ground detection and overload protection

protection and other functions.

4. It has the functions of clock calendar display and environmental temperature and humidity detection.

5. It can store 200 sets of test data, the data can be directly printed or exported to the U disk, and the data can be exported in TXT format

format, the data is in table format and can be printed directly on the computer.

6. RS232 communication interface with high voltage isolation, which can be controlled remotely.

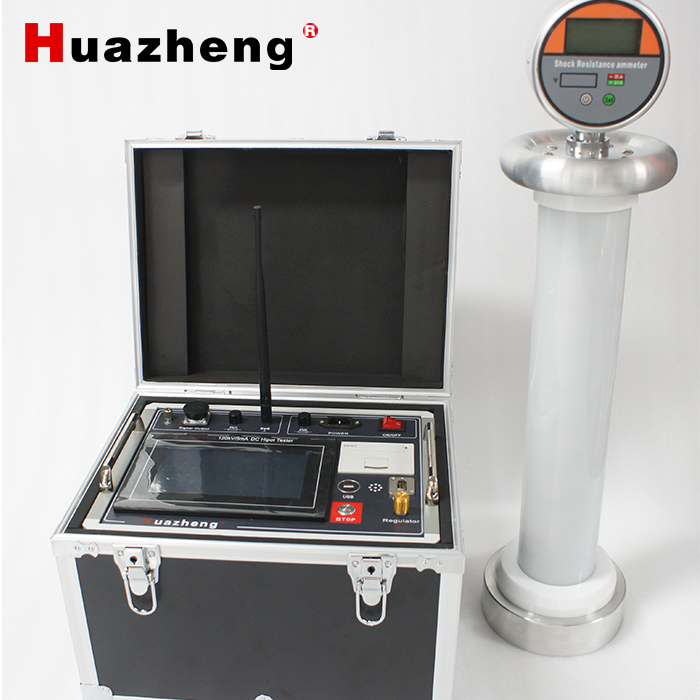

7. The high-end anti-shock ammeter and the host have wireless communication functions, and the data of the ammeter can be directly stored on the host

on display.

8. It has the functions of automatic test, 10 step test, manual test and zinc oxide arrester automatic test.

9. It has the function of completing the high-voltage leakage current test of the two-section arrester with a single boost.

10. Unique capacitive test product automatic boost mode, avoiding interruption of test due to over-current.

11. Digital potentiometer is adopted, with 7 step voltage options:

60-160kV equipment (0.05kV, 0.1kV, 0.2kV, 0.5kV, 1.0kV, 2.0kV, 5.0kV)

200-350kV equipment (0.1kV, 0.2kV, 0.5kV, 1.0kV, 2.0kV, 5.0kV, 10kV)

12. Wide power supply voltage input: AC165V-245V, 50-60HZ.

13. The high-voltage doubler adopts DuPont material all-solid packaging, avoiding the absolute damage caused by air and oil-filled equipment.

Edge problem, wide base light quality outer cylinder, stable placement, more convenient maintenance.

14. Double ground wire protection: there is a ground wire inside the output control line to ensure that the host and high voltage are connected to ensure

The system is in normal use; there is a separate ground wire terminal on the panel of the chassis shell to ensure that the test personnel

and safe use of equipment.

15. It comes with an embedded micro-printer, which is convenient for printing and recording data.

3. The main technical parameters of the product

1. Negative polarity output, 1.1 times of the maximum rated voltage. The output ripple factor is less than 0.5%.

2. Working power supply: single-phase AC 165V～245V, 50-60HZ. At the minimum input voltage, only half the power can be output

and voltage.

3. Rated output voltage: 120kV; rated output current: 5mA, rated output power: 600W.

3. Host voltage measurement accuracy: ±0.5%±2 digits, minimum resolution 0.01KV, maximum display 99999.

4. Host current measurement accuracy: ±0.5%±2 digits, minimum resolution: 0.1µA; maximum display 99999.

5. Measurement accuracy of anti-shock ammeter: ±0.5%±2 characters, minimum resolution: 0.1µA; maximum display

9999.

Range: 0-5mA, 0-10mA, 0-20mA, factory standard configuration 0-5mA.

6. Working method: intermittent work, up to 30 minutes.

7. Voltage stability: random fluctuation, ≤0.5% when the grid voltage changes by ±10%.

8. Working conditions: temperature -10℃～40℃, humidity less than 90%.

9. Storage conditions: temperature -20℃～50℃, humidity less than 95%.

10. Altitude: ≤3000 meters.
