I. Introduction

Thank you for choosing our company's products, for which our company will provide you with comprehensive technical support and service guarantee. This product must be used by qualified personnel. Before using this product, please read the product instruction manual carefully and understand the content, and understand the technical parameters, performance and operation methods of the equipment itself. Please keep the instruction manual in an easily accessible location for future reference.

2. Functional principles

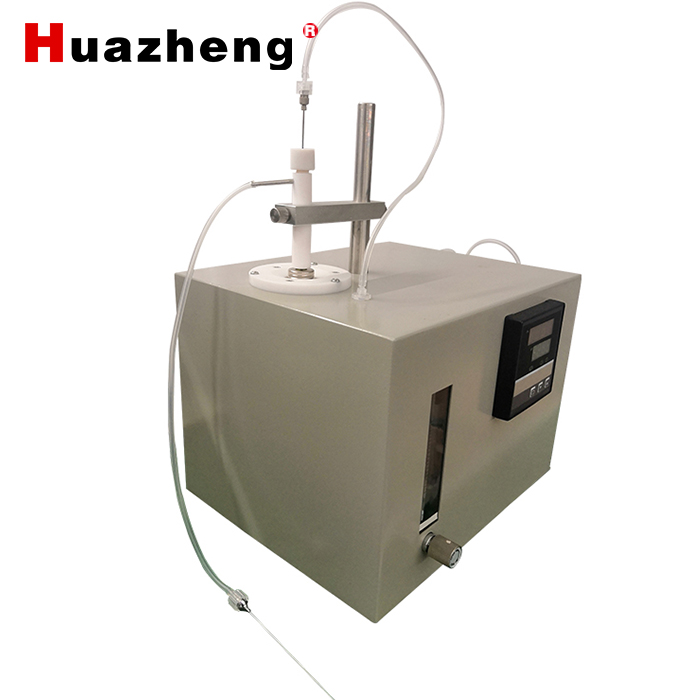

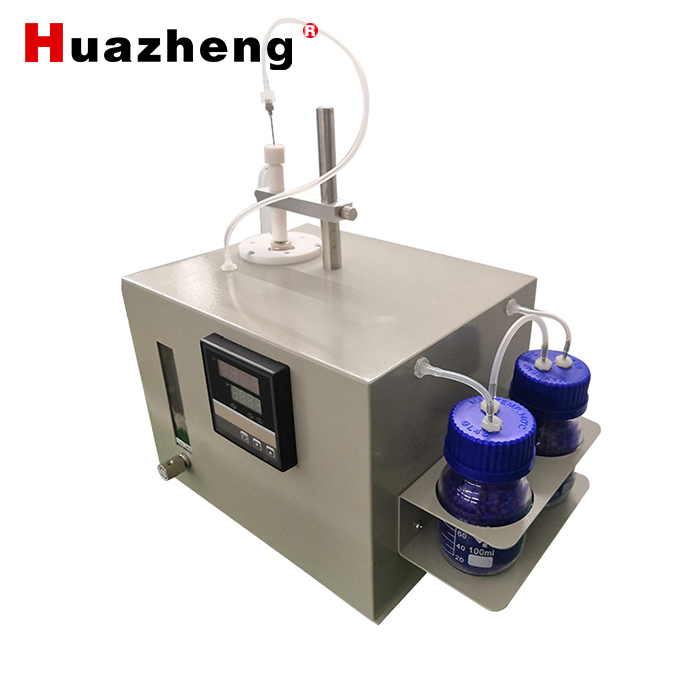

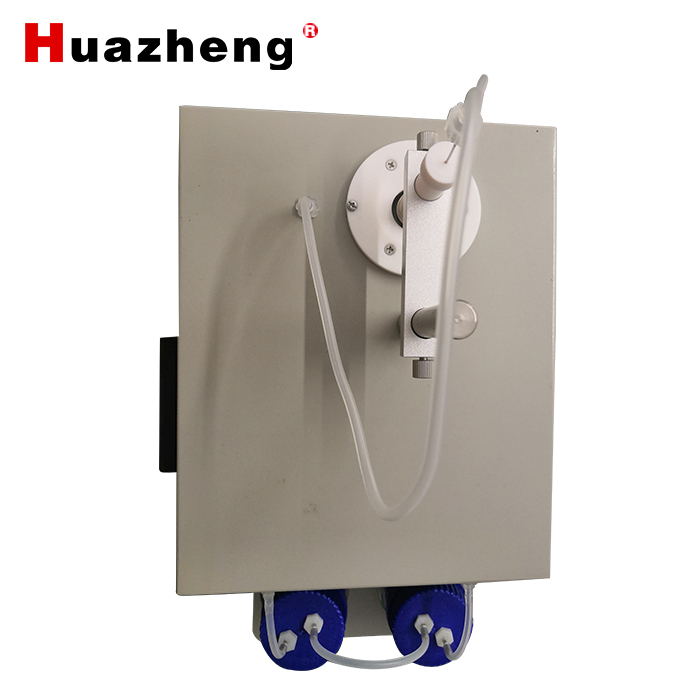

The cassette moisture sampler is also called a cassette furnace. Its working principle is to heat the sample in a sealed sample bottle to above the boiling point of water, and then use dry carrier gas (dry air or high-purity nitrogen) to heat the sample bottle. The water vapor evaporated from the moisture meter is loaded into the Karl Fischer reagent of the moisture meter, and its moisture is measured using a trace moisture analyzer.

A trace moisture analyzer based on the principle of Karl Fischer titration. It is suitable for some samples that are difficult to dissolve in Karl Fischer reagent or have redox reactions with Karl Fischer reagent, such as plastic particles, rubber, graphite, lubricating grease, and solid pharmaceuticals. etc., its moisture cannot be measured directly, and a "cassette furnace" is needed to process such samples and complete the moisture measurement.

Applicable standards: GB/T11133, GB/T37191, SH/T1770, GB/T24533

3. Instrument characteristics

◆ Compact structure and simple operation;

◆ No side reaction interference and no sample contamination;

◆ Suitable for headspace bottles of various specifications;

◆ The headspace needle, injection needle, etc. are made of standard parts, with good compatibility and easy replacement;

4. Technical parameters

Sample bottle specifications: diameter <23mm (compatible with 10mL, 20mL headspace bottles)

Temperature measurement: platinum resistance

Metal bath temperature: room temperature ~ 250℃

Temperature control accuracy: ±0.5℃

Temperature resolution: 0.1℃

Flow velocity measurement: float flow meter

Flow rate range: 0～100mL/min (other ranges can be customized)

Power supply: AC220V±20%

Frequency: 50HZ±10%

Using ambient temperature: 0℃~40℃

Use ambient humidity: ≤85%

Weight: 2kg

External dimensions: 250mm*200mm*180mm
