I. Product Introduction

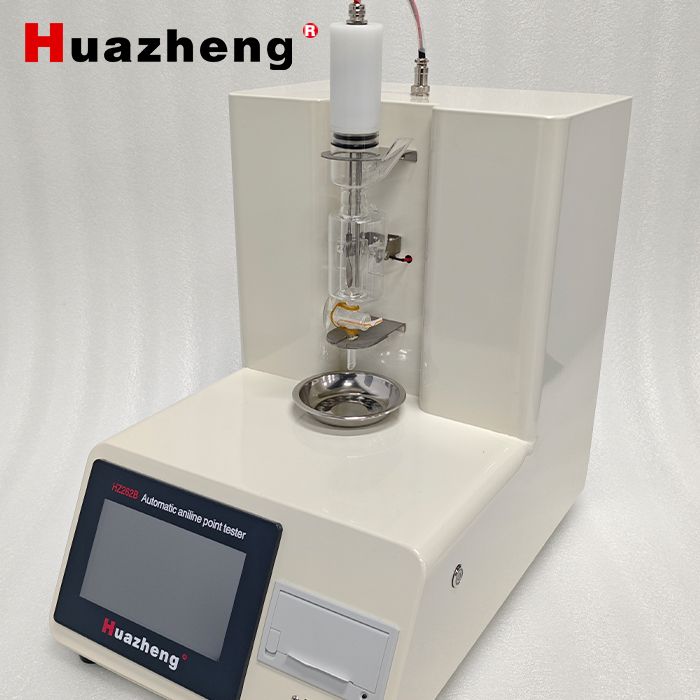

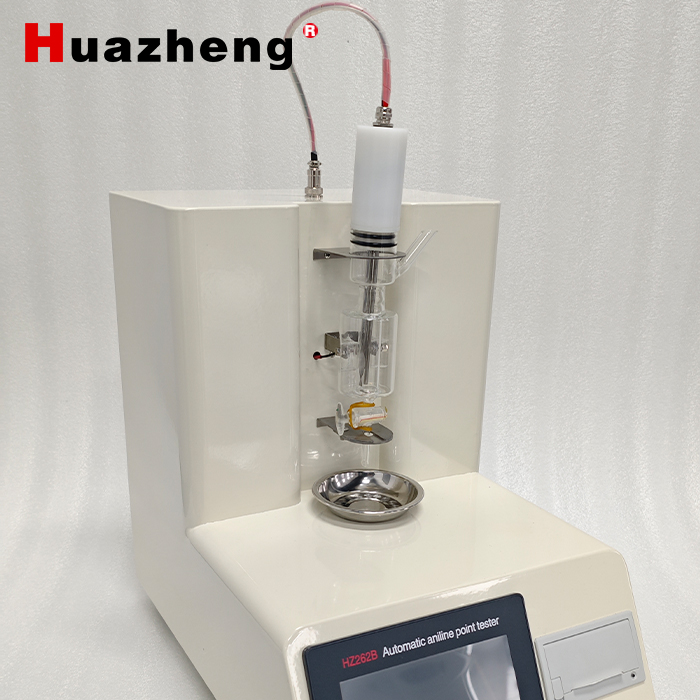

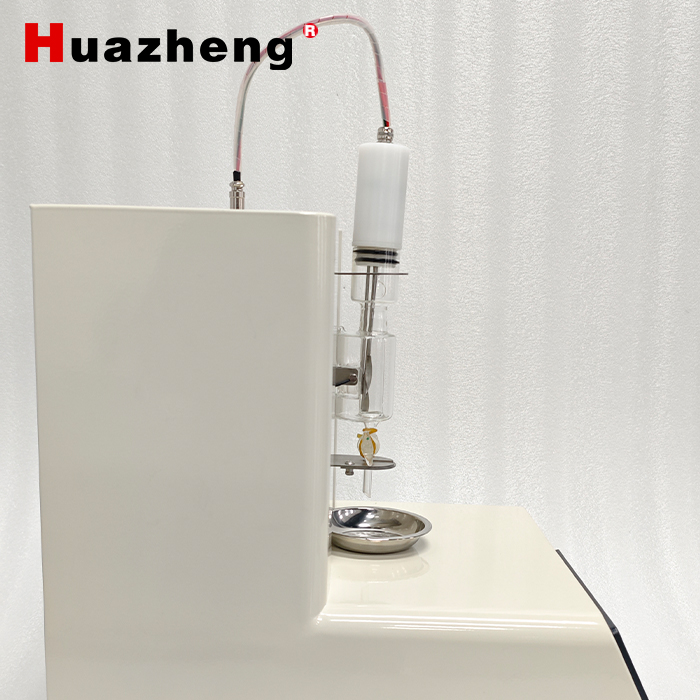

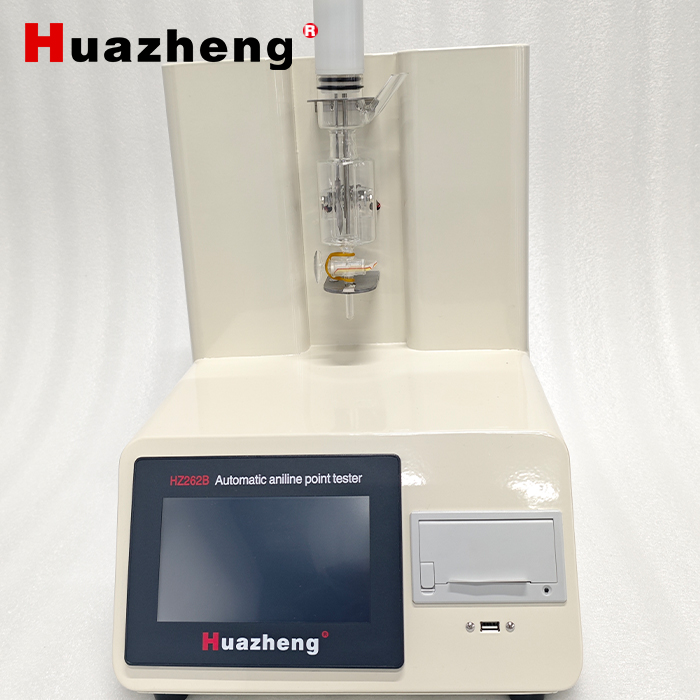

  HZ262B fully automatic aniline point analyzer is designed and manufactured according to the requirements of the national standard ASTM D611 and GB/T262-2010 "Determination of Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents" . The minimum temperature required for petroleum products and an equal volume of aniline to dissolve into a single liquid phase is called the aniline point.

Place the specified volume of aniline and sample in a test tube and mix them with mechanical stirring. Heat the mixture at a controlled rate until the two phases are completely mixed. Then cool the mixture at a controlled rate, and when the two phases separate, the recorded temperature is the aniline point

II. Characteristics

 7-inch color LCD touch screen, stylish and beautiful. Chinese human-machine dialogue interface, clear and intuitive.

 Using imported photoelectric sensors from abroad, the test results are accurate and consistent in repeatability.

 Equipped with over temperature alarm function, if the sample temperature exceeds 170 ℃ during the test, the buzzer will automatically sound an alarm and stop the test.

 The host is controlled by a microprocessor program, and the experimental process automatically heats up, stirs, identifies and stores aniline points Working mode: automatic photoelectric detection, microcontroller control

 Automatic printing, automatic shutdown at the end of the experiment.

 The experimental results can be exported through a USB flash drive and stored on a computer for multiple experiments and comparisons

Technical Parameters

● Temperature control range: room temperature~200 ℃

●Temperature control accuracy: ± 0.1 ℃

● Temperature detection: PT100 platinum resistance temperature sensor

●Heating method: electric heating rod

●Heating power: 60W

●Mixing method: Motor driven soft shaft mixing

● Detection method: photoelectric sensor

● Storage records: 200 records

●Printing method: Micro printer

● Working power supply: 110V 60HZ

●Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

●Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing
