I.Overview

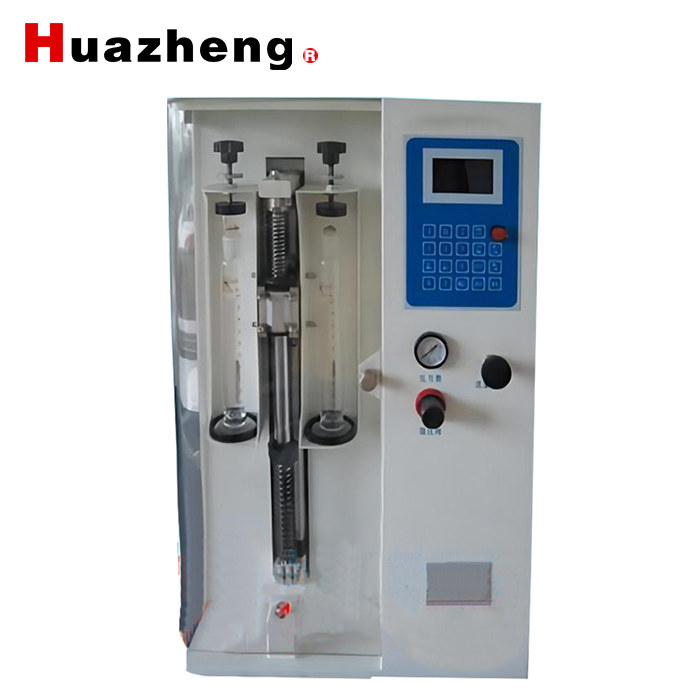

The aviation fuel water reaction automatic tester meets the requirements of GB/T 1793 and ASTMD 1094 test methods, and is suitable for the determination of water-soluble components in aviation gasoline and aviation turbine fuel, as well as the influence of these components on volume change and oil-water interface.II.Main features.

II.Functional features

1. Pneumatic drive to achieve vertical reciprocating motion

2. Microcomputer control, accurate control of test time, test stroke, calculation of round-trip time

3. Provide flexible adjustment of various experimental methods, itinerary, time and other parameters

4. Automatically store data, connect the serial port to the host computer, print data, and upload data

5. Equipped with LED light source.

III.Technical parameters

1. Power supply: AC 220 V ± 0.150 Hz

2. Power: 40W

3. Communication port: 232 serial port

4. Printer: Thermal Micro Printer

5. Light source: LED light

6. Amplitude adjustment: 120~250mm (adjustable every 5mm)

7. Speed adjustment: 2 * 4 times/second

8. Timing: 115 x 125 seconds

9. Standing time: 5 minutes

10. Environmental requirements: temperature 5≤40℃, humidity≤0.85

11. Dimensions and weight: 480 × 430 × 620 (mm); 42 kg
