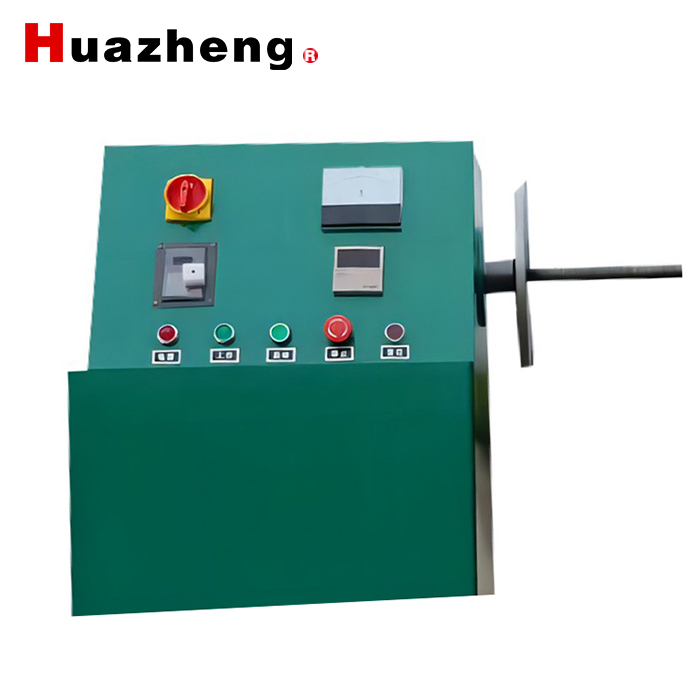

I. Overview And Use

The series -type CNC electric winding machine uses a large -scale integrated circuit and single -chip control technology to make its CNC performance and system stability of the domestic advanced level.

The shape of the whole machine is beautiful and generous, flexible and comfortable in operation, with preset control, levelless speed regulation, positive and negative counting, braking advance, automatic stoppopulation, with the advantages of large power torque, stable speed regulation, accurate control, etc., and with tails with tails The top needle device is the ideal winding equipment of small and medium motors, motors and various transformers.

Suitable ultra -long, large rotation diameter of various types of wire bags, sensors, scratching of high -voltage coils; wounds of coarse and flat wire packages; wound of magnetic motor saddle -type iron core coils; Y315 and 630KW below various types The rolling of the motor stator coil and the wound of various transformer wire bags.

II. Technical Parameters

◆ Subdivy motor: 2.5kW 2 to 4 pole DC speed adjustment motors

◆ Flower plate diameter: 300mm

◆ First -level deceleration: belt disc

◆ Second -level deceleration: gear gearbox

◆Spindle output speed: 0 to 50 rpm/cents    Application: ≤630kW

◆ Power requirements: 380V 15-30A

◆Subdivy center height: 900mm (from the ground)

◆ Can be width of the coil: 0 ～ 650mm     Around the diameter of the coil: 0 ～ 1500mm

◆ The entire machine weight: 500kg

III. Operation Method

1. When the winding machine is powered on, the power indicator light should be on. (Press the "reset" key to zero in abnormal conditions).

2. Select "Positive Turning" and "Reverse"; set the number of circles you want and adjust the speed adjustment knob to zero.

3. If it runs once, there is a number of circles during the winding process, and you can choose "brakes ahead of time."

4. Press "Start/Passing". At this time, the "running indicator light" is on, and the winding machine is running to display the currently winding number. Automatically stop after the preset circle. (Indicator lamp)

5. The function of the "Start/Passing" key is that every time the key digital tube is pressed at zero, the preset current number and brakes are stored in advance. When the intermediate process is suspended, each key is pressed, and only the current number of the preset circle is stored. After the winding is completed, press the key once to clear the digital tube, press the second key, and repeat the winding. (Allow the setting circle at any time of stopping).

6. If you need to change the winding direction during the winding process, it should be paused, and the "positive/reverse" switch is moved after the motor is stopped.

7. In order to protect this machine, the "Start/Portal" key is set by a delay trigger control method. When the key is pressed, it takes 0.5 to 1 second to press the second key to work.

For the convenience of users, this machine is equipped with an external "start / pause" foot switch.

IV. precautions

1. Do not set the preset number at the "0000" position value.

2. In the rotation process, the motor will never allow the "positive / reverse" switch, otherwise it will burn the control circuit.

3. The speed control circuit with this machine has an overcurrent automatic protection function. When the electrical driving force runs over load or start frequently, the internal relay moves. At this time Then boot.

4. The "start/pause" key of this winding machine uses trigger control. Therefore, when using an external pedaling switch, you need to press it completely before letting go. Essence

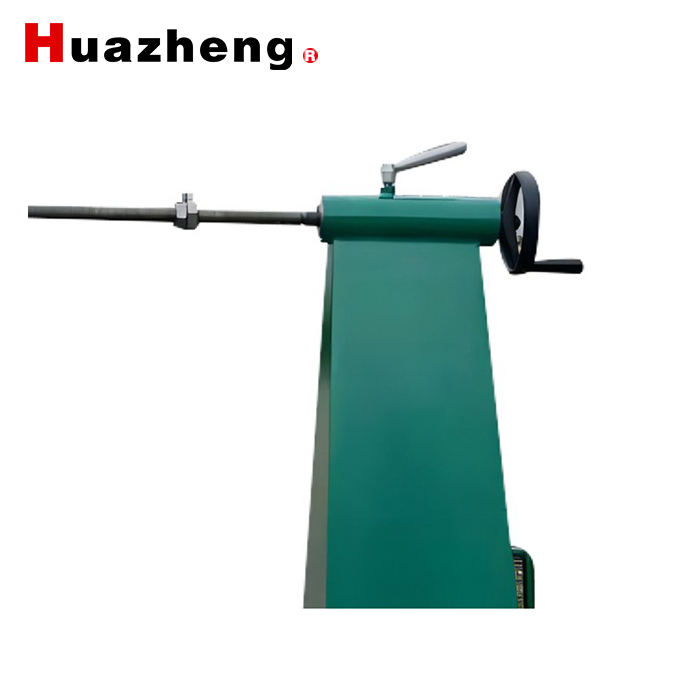

5. In the tail seat and in the gearbox, lubricating oil should be added frequently. When the top pressure is found, the tail seat adjustment disk can be adjusted.
