I. Method Summary

It is said that a certain amount of samples are dissolved in the solvent used, and the impurities left on the filter paper or microporous glass filter are filtered with a constant filter paper or microporous glass filter.

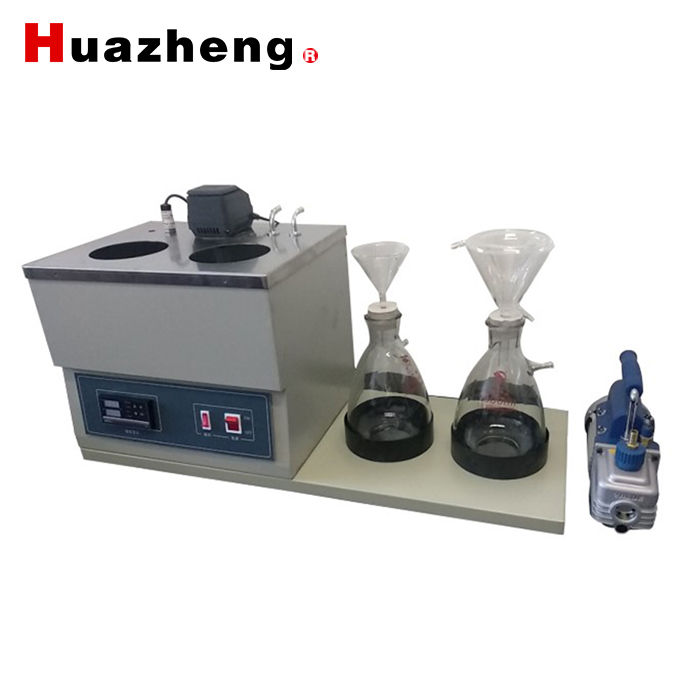

The HZ1820 mechanical impurities measurement instrument is designed according to the requirements of the GB/T511 "Petroleum Products and Additive Mechanical Impurities Methods (Light Law)". The content of the mechanical impurities of oil and additives.

II. The Main Technical Parameters

1. Work power: AC220V ± 10%, 50Hz.

2. Heating power: 2.0kW.

3. Temperature control range: room temperature ∼100 ° C (arbitrarily set at temperature).

4. Temperature display: LED number display.

5. Heating method: heating metal bath

6. Air pump: built -in air pump, no external gas source

7. Temperature control accuracy: ≤ ± 1 ℃.

8. Dimensions: 480㎜ × 335㎜ × 490㎜ (length × width × height) Weight: 15kg

9. Environmental temperature: ≤35 ℃.

10. Relative humidity: ≤85 %.

11. The power consumption of the whole machine: not greater than 2.0 kw.

III. Packing List
