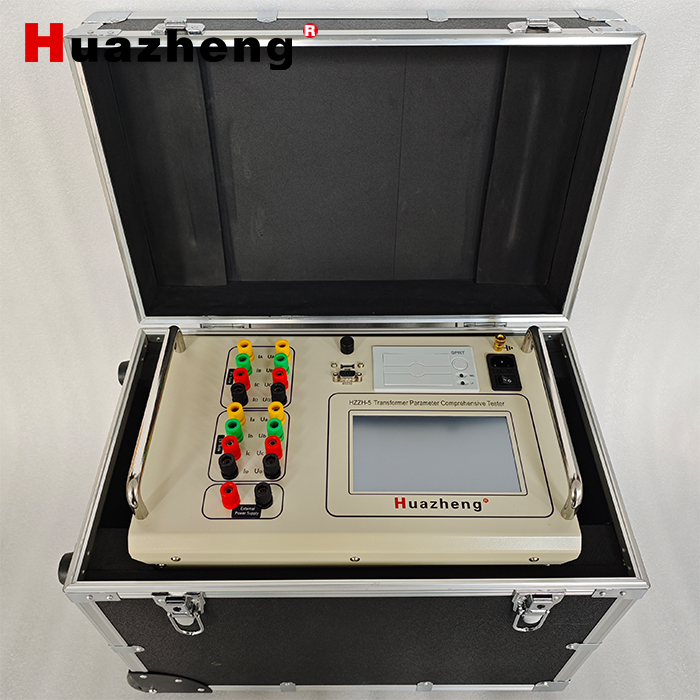

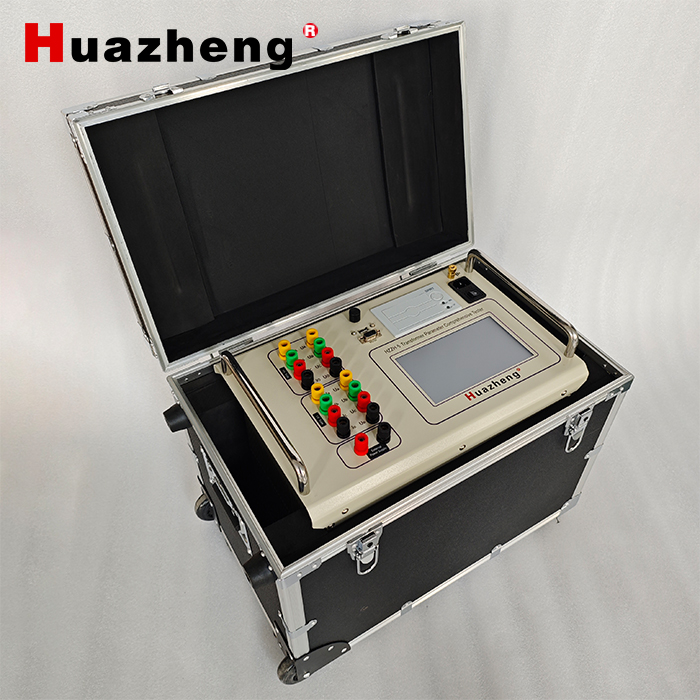

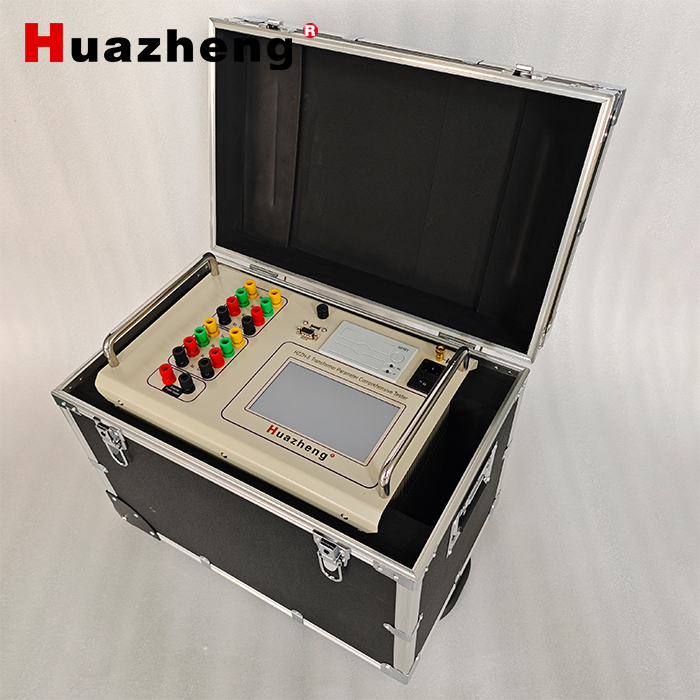

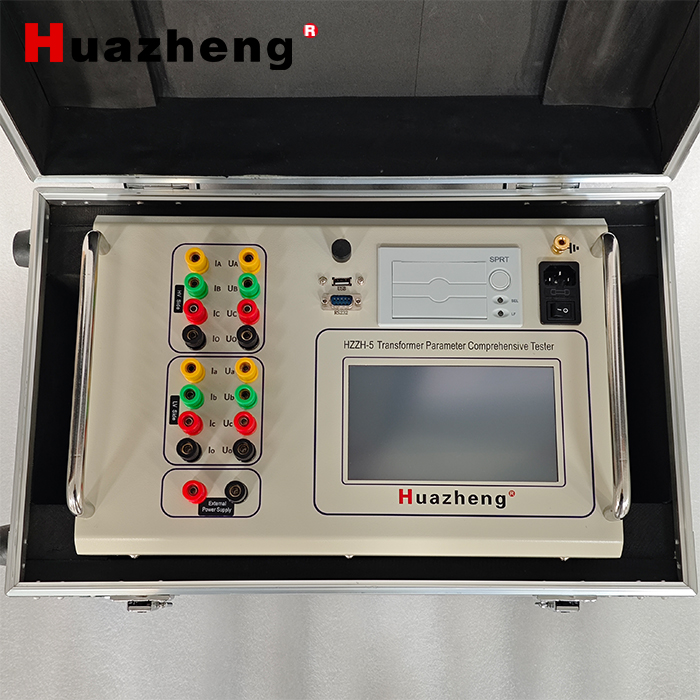

HZZH-5 Transformer Parameter Comprehensive Tester
HZZH-5 Transformer Parameter Comprehensive Tester

I. Product Introduction

The  HZZH-5  Transformer  Comprehensive  Tester  integrates  a  DC  resistance tester,     low-voltage     short-circuit     impedance     tester,     on-load     switch     tester, demagnetization tester  and transformer ratio tester into one  device  for  testing large power transformers.

II. Product Features

Product Design

1.  One-time  wiring  completes  all  test  items,  reducing  the  workload  of  on-site testers.

2.  Equipped  with  a  7-inch  color  touch  LCD  screen  for  control  and  display, providing a user-friendly interface.

3.  Built-in micro printer for on-site printing of test results.

4.  USB storage function for external storage of test results.

5.  One isolated RS232  communication interface  with   standard   protocol communication.

6.  Bluetooth communication  module  with  standard  protocol  wireless communication.

7.  High-reliability RS485 bus for internal communication.

8.  Isolated   circuit   design   to   eliminate   interference   between   test   functions; hardware and software filtering to improve anti-interference capability; good grounding and shielding measures to enhance overall anti-interference capability.

 DC Resistance Test

1. Three-phase simultaneous testing and automatic magnetization.

2. High and low voltage current and potential test leads can be connected to the transformer at once, eliminating the need to switch test leads during the test.

3. For star-connected windings with a neutral point, the A0, B0, and C0 phase resistances can be tested simultaneously, significantly saving test time.

4.  For   an   internally   delta-connected   three-phase   five-limb   transformer,  the automatic excitation method can be used during low-voltage side testing, which offers fast testing speed.

5. Displays and prints all test data of high, medium, and low voltage windings, automatically calculates three-phase unbalance, and prints resistance values converted to rated temperature.

6. Comprehensive back EMF protection.

Short-Circuit Impedance Test

1.  Single-phase 220V power supply is used to automatically apply current to the AB, BC, and CA windings ofthe transformer, synchronously collect data, and convert it to the rated impedance percentage.

2.  For three-phase transformers with Y/, Y/Y,  /Y connections, the wiring can be connected once, and the three-phase measurement can be selected to automatically measure the data and calculate the impedance value and impedance error.

3.  When using the single-phase method for three-phase transformers, input 1/3 of the rated capacity.

4. Displays and prints all test data of the transformer.

5. The device can permanently store test data.

On-load Switch Test

1. Three independent constant current sources.

2. Powerful functions, including transition waveform, transition time, transition resistance, and three-phase synchronization measurement.

3. Intelligent testing and result analysis.

4. Displays and prints the test waveform of the transformer's on-load switch.

5. The instrument can permanently store test waveforms.

6. Equipped with an automatic discharge circuit and overvoltage protection circuit.

Transformer demagnetization Test

1. Fast demagnetization with obvious effects.

2. Fully automatic and manual demagnetization functions, with a progress bar and percentage displayed during demagnetization.

3. Comprehensive back EMF protection.

4.  Suitable  for  eliminating  residual  magnetism  in  large  power  transformers  of 35kV and above before operation.

5.  Automatic  current   stabilization  judgment,   data  acquisition,  and  processing functions.

6. One-button operation, strong anti-interference ability.

7. Can directly use the current leads of the DC resistance test, convenient for use with the DC resistance test.

Transformer Ratio Test

1.  Chinese/English menu prompts, simple and convenient operation.

2.  Three-phase  testing  only requires  inputting the high-voltage  side  connection method to automatically measure the group.

3.  Capable of both single-phase measurement and automatic testing of three-phase windings.   The    connection   group    can   be    arbitrarily    selected,   completing    the measurement of parameters such as the ratio, error, and connection group of AB, BC, and CA phases in one go.

4.  Protection function for high and low voltage reverse connection.

5.  Fast testing speed, completing single-phase testing in 15 seconds.

6.  Protection functions for transformer short-circuit and inter-turn short-circuit.


III. Main Technical Specifications

1.DC Resistance Test

Three-Phase Test

10A, 5A, 1A three ranges.



Test Range

10A500.0μΩ~

5A 10mΩ~

1A ~20Ω

Phase-Separated Test

20A, 10A, 5A, 1A four ranges.





Test Range

20A100.0μΩ~


10A500.0μΩ~


5A 10mΩ~


1A ~20Ω


Resolution

0. 1μΩ


Measurement Accuracy

class 0.2




2.  Short-Circuit Impedance Test

Voltage Measurement Range 5400V

Measurement Accuracy: class 0.2

Current Measurement Range:

0. 110A

Measurement Accuracy: class 0.2



3. On-load Switch Test

Output Current:

1A: 0.5 A

Resistance Resolution

0.01Ω

Transition Resistance Range

0.2Ω~20Ω      ~50Ω

Transition Time Range

0240ms

Measurement Accuracy

Transition  resistance  ±  5%  + 0.2Ω)

Synchronization Time

0. 1ms



4. Transformer demagnetization Test

Output DC Current

1A - 10A

Output DC Voltage

20V, 30V, 40V, 50V



5. Transformer Ratio

Range of Ratio

1-5000

       Measurement     Accuracy

0. 1%0.8—10000.2% (1000—2000)

0.5% (2000—5000)

Transformer

Connection Group

YY0 YY6 YD1 YD5 YD7 YD11 DD0 DD2 DD4 DD6 DD8 DD10 DY1 DY5 DY7 DY11

Testing Voltage

10V/160V
